AWS Global Infrastructure and Core Services

Every AWS resource runs in a specific place: you pick a Region, often an Availability Zone, and you take on a defined share of the security work. Wrong choices here lead to single points of failure, slow responses for distant users, or data stored in the wrong country. This guide explains Regions, Availability Zones and edge locations, global versus regional services, the main storage types, and the shared responsibility model.

A short history of AWS

AWS launched publicly in 2006 with Amazon S3 for storage, followed a few months later by Amazon EC2 for virtual servers. An early version of Amazon SQS (a message queue) had been announced in 2004. Today AWS offers more than 200 services. The official story is on the AWS origins page.

The building blocks

The AWS Global Infrastructure has three main layers:

By count, edge locations outnumber Availability Zones, and Availability Zones outnumber Regions.

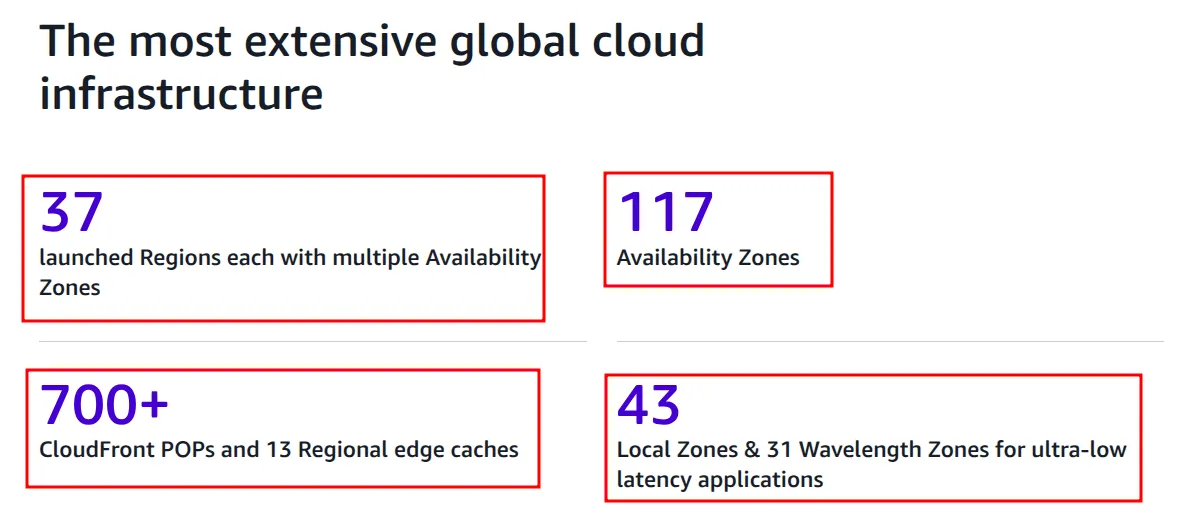

The screenshot below shows the AWS global infrastructure page when I captured it. It listed 37 Regions, 117 Availability Zones, more than 700 CloudFront PoPs with 13 Regional edge caches, 43 Local Zones and 31 Wavelength Zones. These numbers grow every year, so check the Regions and Availability Zones page for current counts.

Regions

A Region is a physical location with several Availability Zones. Regions are isolated from each other for fault tolerance. AWS does not copy your data to another Region on its own. If your business needs a copy in a second Region, you set up that replication yourself. Traffic between Regions travels over the AWS backbone network.

A few details that matter in practice:

• Opt-in Regions: Regions launched before March 20, 2019 are enabled by default. Newer ones, such as Asia Pacific (Hong Kong), Asia Pacific (Hyderabad) and Middle East (Bahrain), are disabled until you enable them on the account page. See Enable or disable AWS Regions.
• Separate partitions: the China Regions (Beijing and Ningxia) need a separate AWS China account. The AWS GovCloud (US) Regions are isolated Regions for US government agencies and customers with strict compliance needs.
• Example, London: the London Region (eu-west-2) has three Availability Zones. If you spread your EC2 or RDS resources across all three and one AZ fails, the other two keep serving traffic.

Choosing a Region

Availability Zones

Each Region has several AZs. An AZ is a fully isolated part of the AWS infrastructure: one or more data centers with redundant power, networking and cooling. AZs in a Region are many kilometers apart, so a fire, flood or power failure in one does not take down the others. All AZs in a Region are within 100 km (60 miles) of each other.

AZs are linked with high-bandwidth, low-latency private fiber. The network is fast enough for synchronous replication: a write is saved in two AZs before the application is told it succeeded. AWS does not apply it to every service automatically. Services such as Amazon RDS Multi-AZ use it, and for your own EC2 workloads you design it yourself.

You choose the AZs for your resources. AWS recommends running across at least two AZs so your system survives the loss of one.

Data centers

Data centers are where data is stored and processed. You cannot choose a data center; the AZ is the smallest location you can select. AWS keeps data center locations secret, limits physical access, builds in redundant power and networking, and moves traffic away from a failed area automatically.

Edge network: Points of Presence

Points of Presence bring some services closer to users than any Region can.

What the infrastructure gives you

• Elastic and scalable: capacity grows and shrinks with demand.
• Fault tolerant: built-in redundancy keeps workloads running when one component fails.
• Highly available: little downtime, with failover handled mostly without human action.

AWS service categories

On top of the infrastructure sit the services, in layers: foundation services (compute, networking, storage), then platform services (databases, analytics, application services, deployment and management), then end-user applications.

The full catalog is on the AWS products page. The Cloud Practitioner exam focuses on these categories:

The core services each have a hands-on guide: IAM, EC2, S3 and VPC.

Global, regional and zonal services

The Region selector in the top-right of the console tells you how a service is scoped. For a global service it shows "Global". Service scope is a common exam question, and it also matters when you write Terraform or CLI commands, because a regional resource exists only in the Region you created it in.

Storage types

S3 storage classes are covered in Amazon S3, and EBS volumes in Amazon EC2.

Accessing your AWS account

Root user and IAM users

When you sign up, AWS creates the root user, which signs in with the account email and has full access to everything. You need a payment card to sign up; AWS uses it to verify your identity.

Use the root user only for the few tasks that require it, such as changing account settings, closing the account or some billing tasks. Turn on MFA (multi-factor authentication) for it and never share its credentials. For daily work, use an IAM user or, preferably, AWS IAM Identity Center. In a company DevOps role you typically receive one of these, scoped to the permissions your job needs.

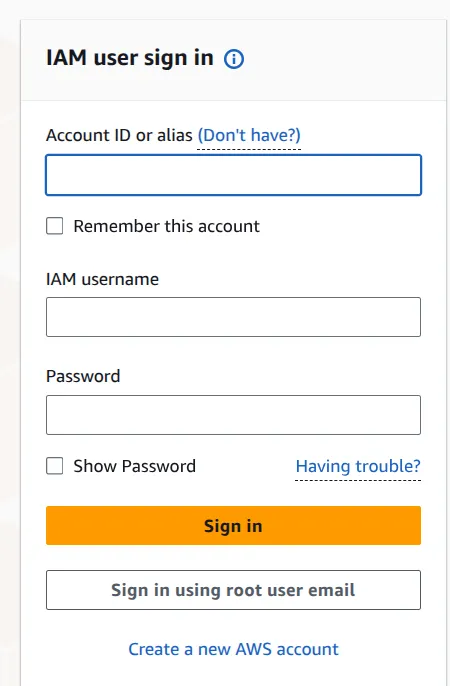

The sign-in page at https://console.aws.amazon.com/ asks IAM users for the account ID or alias, the IAM username and the password. The "Sign in using root user email" button is for the root user. After sign-in, the console home shows recently visited services, cost and usage, and security and health widgets. Setting up IAM users, groups and policies step by step is in AWS IAM.

CLI and SDK

The previous part lists the three ways to use AWS. The examples below show the CLI and SDK in practice. After you set up credentials with aws configure, this command lists your S3 buckets:

$ aws s3 ls

The same call from Python with the boto3 SDK:

import boto3

s3 = boto3.client("s3")
for bucket in s3.list_buckets()["Buckets"]:
    print(bucket["Name"])

The shared responsibility model

Security on AWS is split between AWS and you.

The line moves with the service type. On EC2 (IaaS) you patch the operating system yourself. On Amazon RDS, AWS patches the database engine, but you still configure backups, network access and users. On S3 you mostly manage data, bucket policies and encryption settings. The official page is Shared Responsibility Model.

In the exam, expect a scenario that names the services in use and asks who is responsible for a given task.

Key takeaways

• A Region is a separate geographic area. It contains several Availability Zones, and each AZ is one or more data centers. Data does not leave a Region unless you copy it.
• Choose a Region by law and compliance first, then latency, service availability and cost. Spread workloads across at least two AZs.
• Edge locations and Regional edge caches serve CloudFront and Route 53 traffic close to users. Local Zones and Wavelength Zones bring compute closer for low latency.
• IAM, Route 53 and CloudFront are global. VPC, Lambda and S3 buckets are regional. EC2 instances, EBS volumes and subnets are zonal.
• Pick storage by access pattern: S3 for objects, EBS for one instance's disk, EFS or FSx for shared files, instance store only for temporary data.
• AWS secures the cloud itself, and you secure what you put in it. How much is yours depends on the service.

Next in this series: AWS Pricing and Billing.
